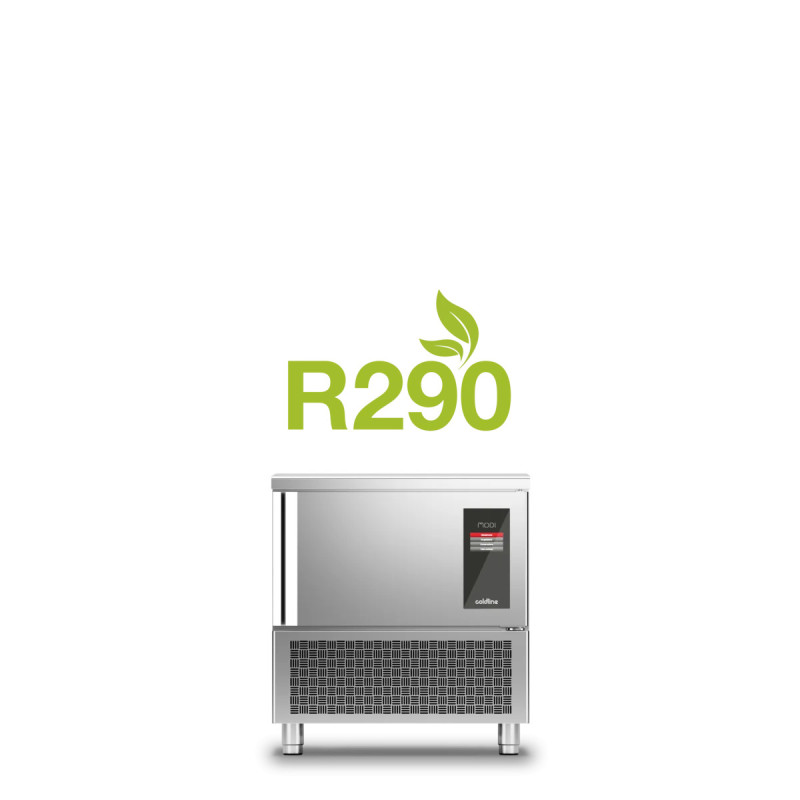

Rapid Blast Chiller Modi Up 5 Levels GN
This professional equipment offers rapid cooling, blast freezing, and manual cycle functions.
It includes a rack compatible with GN1/1 containers and features a 4.3-inch touchscreen display with a USB port for easy control and programming.
The doors are padded and equipped with an anti-odor system to maintain hygiene and freshness.
The door gasket is a triple-chamber magnetic type designed for easy replacement.
It includes a core probe with a single detection point that can be quickly released and replaced.
The insulation is free from CFC and HCFC, ensuring energy efficiency and environmental compliance.
Constructed entirely from AISI 304 stainless steel, this unit features rounded internal corners for optimal hygiene.
The handle is made from durable stainless steel, complemented by stainless steel wire grids and guides.
The worktop is reinforced for added strength, and the adjustable feet provide stability and adaptability in professional kitchen environments.
Technical specifications
| Gross capacity | 102 lt |
| Operating temperature | -40°+10°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 20 kg |
| Yield +90/-18 | 15 kg |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 150g |
| Defrosting | With hot gas |
| Regulator | Electronic expansion |
| Dimensions | 710×700×853 mm |
| Packaging dimensions | 805×800×910 mm |
| Net / gross weight | 105 Kg / 115 Kg |
| Net / Gross volume | / 102 lt |
| Power Supply | 220-240 V - 50 Hz |
| Unit power consumption | 827 W - 4.7 A |
| Cooling capacity | 1349 W* |
| * | Evap. -10°C Cond. +40°C |
