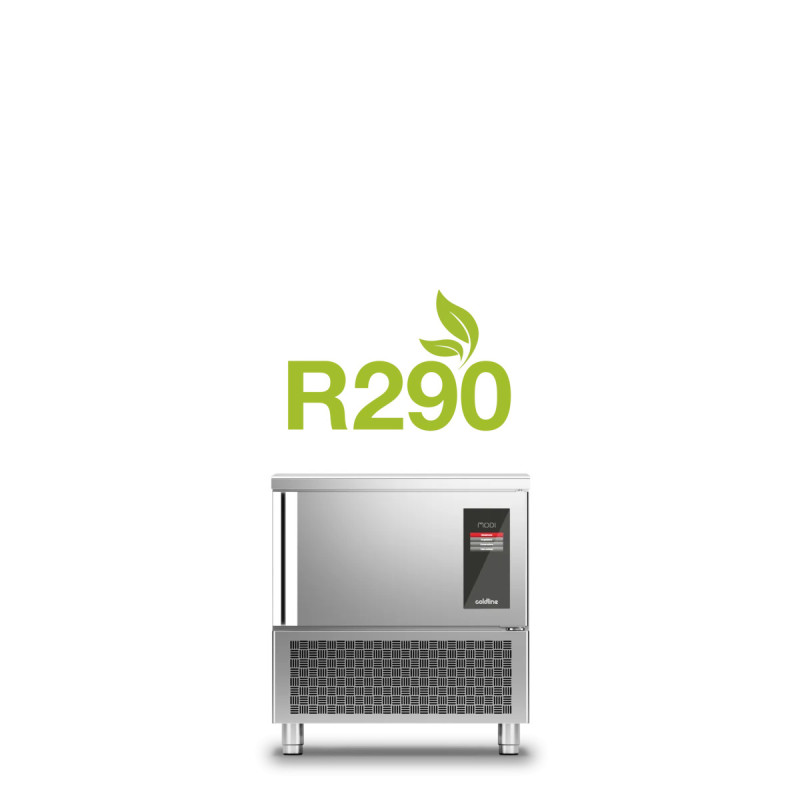

Modi Active Blast Chiller 5 levels GN-EN P 800
This multifunctional unit offers rapid cooling, blast freezing, thawing, proofing, holding, drying, chocolate processing, and manual cycle options.
It is equipped with multiple pairs of slides compatible with standard gastronorm grids, enhancing versatility in professional kitchens.
The control system features a touchscreen display with USB connectivity for easy operation and data management.
The padded doors incorporate an anti-odor system, while the triple-chamber magnetic door gasket is designed for easy replacement, ensuring hygiene and maintenance efficiency.
The unit includes a core probe with a single detection point, designed for quick release and easy replacement.
Insulation is environmentally friendly and efficient.
Both internal and external surfaces are finished in AISI 304 stainless steel, with rounded internal corners to promote hygiene.
The handle and grids are also made from durable AISI 304 stainless steel, featuring quick-release mechanisms.
The worktop is reinforced for durability, and the adjustable feet provide stability and adaptability in commercial kitchen environments.
Technical specifications
| Gross capacity | 134 lt |
| Operating temperature | -40°+65°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 23 kg |
| Yield +90/-18 | 18 kg |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 150g |
| Defrosting | With hot gas |
| Regulator | Electronic expansion |
| Dimensions | 780×800×853 mm |
| Packaging dimensions | 875×915×910 mm |
| Net / gross weight | 115 Kg / 125 Kg |
| Net / Gross volume | / 134 lt |
| Power Supply | 220-240 V - 50 Hz |
| Unit power consumption | 827 W - 4.7 A |
| Cooling capacity | 1349 W* |
| * | Evap. -10°C Cond. +40°C |
