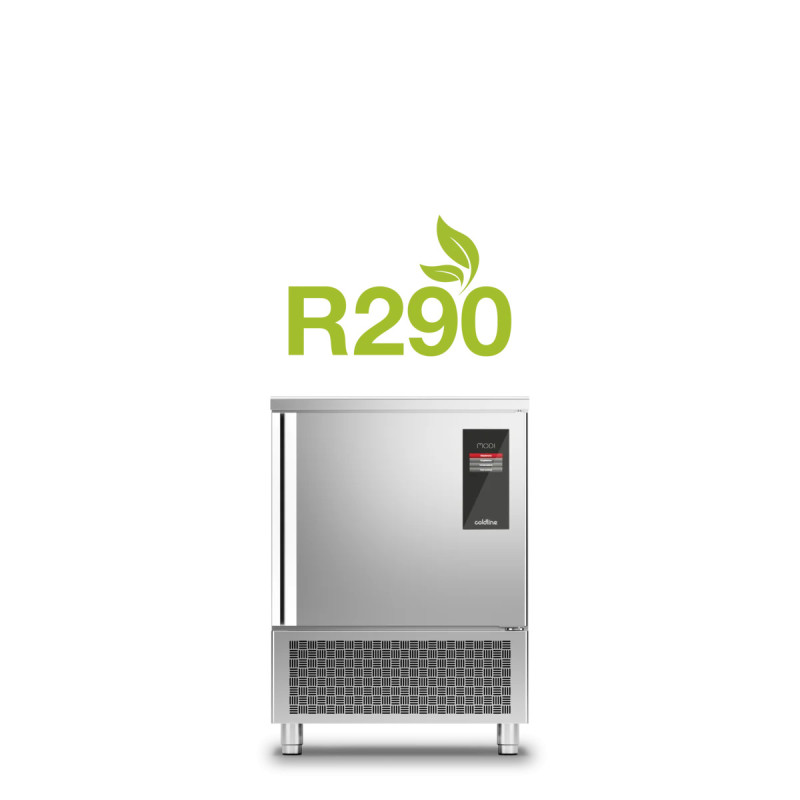

Modi Active Blast Chiller 6 levels GN-EN P 700
This professional equipment offers multiple functions including rapid cooling, blast freezing, thawing, proofing, holding, drying, chocolate processing, and manual cycle operation.
It is designed to accommodate standard gastronorm trays, facilitating versatile use in commercial kitchens.
The unit features an intuitive touchscreen control panel with USB connectivity for easy operation and data management.
Doors are padded and equipped with an anti-odor system to maintain hygiene and freshness.
The door gasket is a triple-chamber magnetic design, allowing for simple replacement and enhanced sealing.
Constructed with AISI 304 stainless steel for both internal and external surfaces, this equipment ensures durability and hygiene with rounded internal corners for easy cleaning.
It includes a core probe with a quick-release mechanism for accurate temperature monitoring.
The handle and grids are also made from stainless steel with quick-release features.
The worktop is reinforced for added strength, and the adjustable stainless steel feet provide stability on various surfaces.
Technical specifications
| Gross capacity | 238 lt |
| Operating temperature | -40°+65°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 34 kg |
| Yield +90/-18 | 25 kg |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 150g |
| Defrosting | With hot gas |
| Regulator | Electronic expansion |
| Dimensions | 780×800×1093 mm |
| Packaging dimensions | 875×915×1150 mm |
| Net / gross weight | 140 Kg / 150 Kg |
| Net / Gross volume | / 238 lt |
| Power Supply | 220-240 V - 50 Hz |
| Unit power consumption | 1523 W - 6.6 A |
| Cooling capacity | 2368 W* |
| * | Evap. -10°C Cond. +40°C |
