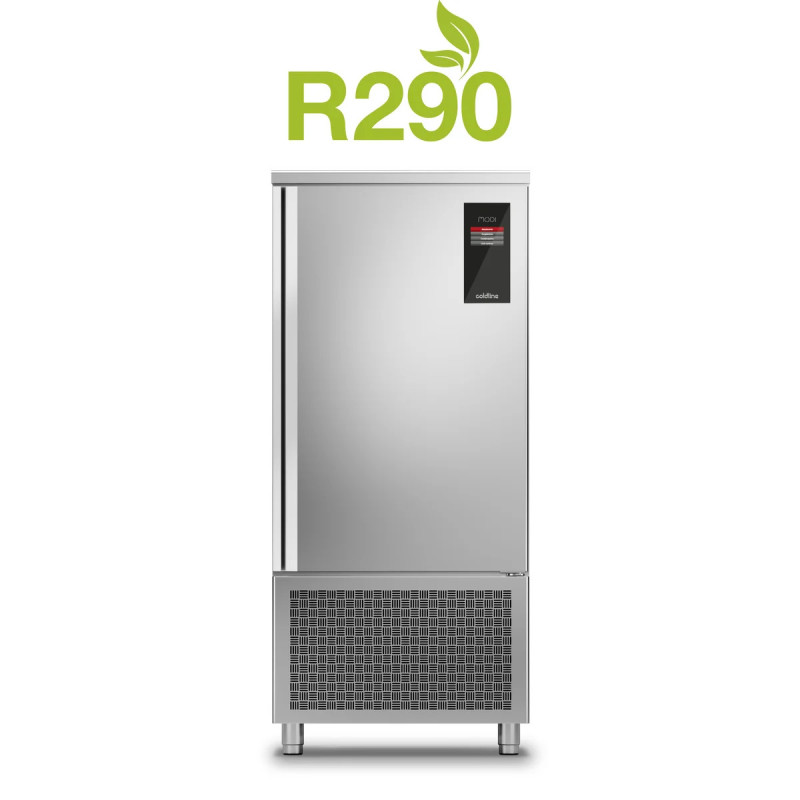

Modi Active Blast Chiller 7 GN levels
This equipment offers rapid cooling, blast freezing, and manual cycle functions, featuring multiple GN1/1 slide pairs for versatile use.
It is controlled via a 4.3-inch touchscreen display with a USB port for easy programming and data management.
The worktop is designed for durability and professional use.
The unit is equipped with padded doors featuring an anti-odor system to maintain freshness.
It includes a triple-chamber magnetic door gasket that is easily replaceable.
A core probe with a single detection point offers quick release and simple replacement for precise temperature monitoring.
Constructed with CFC/HCFC-free insulation, the unit features external and internal finishes in AISI 304 stainless steel for durability and hygiene.
Rounded internal corners facilitate cleaning, while stainless steel handles, grids, and guides with quick-release mechanisms enhance functionality.
Adjustable stainless steel feet provide stability in professional kitchen environments.
Technical specifications
| Gross capacity | 463 lt |
| Operating temperature | -40°+10°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 70 kg |
| Yield +90/-18 | 60 kg |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 150g |
| Defrosting | With hot gas |
| Regulator | Electronic expansion |
| Dimensions | 780×800×1778 mm |
| Packaging dimensions | 875×915×1840 mm |
| Net / gross weight | 200 Kg / 210 Kg |
| Net / Gross volume | / 463 lt |
| Power Supply | 220-240 V - 50 Hz |
| Unit power consumption | 3043 W - 14.7 A |
| Cooling capacity | 5546 W* |
| * | Evap. -10°C Cond. +40°C |
