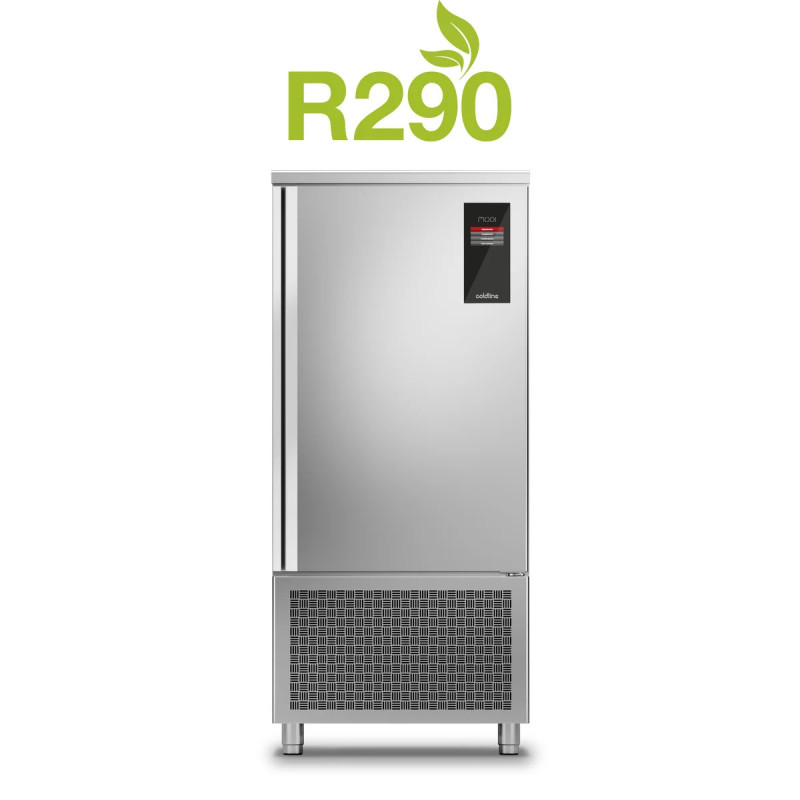

Blast Chiller Modi Up 10 levels GN-EN
This multifunctional equipment offers rapid cooling, blast freezing, thawing, proofing, holding, drying, chocolate processing, and manual cycle options.
It is designed to accommodate standard GN1/1 slides and features a durable worktop for professional kitchen use.
Equipped with a 4.3-inch touchscreen display and USB port for intuitive control, this unit features padded doors with an anti-odor system.
The door gasket is triple-chambered, magnetic, and easily replaceable to ensure optimal sealing and hygiene.
The core probe includes a single detection point with a quick-release mechanism for easy replacement.
Insulation is environmentally friendly, free of CFC and HCFC.
Both internal and external surfaces are finished in AISI 304 stainless steel with rounded internal corners for enhanced hygiene.
The handle is constructed from AISI 304 stainless steel, and grids and guides are also made from stainless steel with quick-release functionality.
The feet are adjustable and crafted from AISI 304 stainless steel.
Technical specifications
| Gross capacity | 463 lt |
| Operating temperature | -40°+65°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 70 kg |
| Yield +90/-18 | 60 kg |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 150g |
| Defrosting | With hot gas |
| Regulator | Electronic expansion |
| Dimensions | 780×800×1778 mm |
| Packaging dimensions | 875×915×1840 mm |
| Net / gross weight | 200 Kg / 210 Kg |
| Net / Gross volume | / 463 lt |
| Power Supply | 220-240 V - 50 Hz |
| Unit power consumption | 3043 W - 14.7 A |
| Cooling capacity | 5546 W* |
| * | Evap. -10°C Cond. +40°C |
