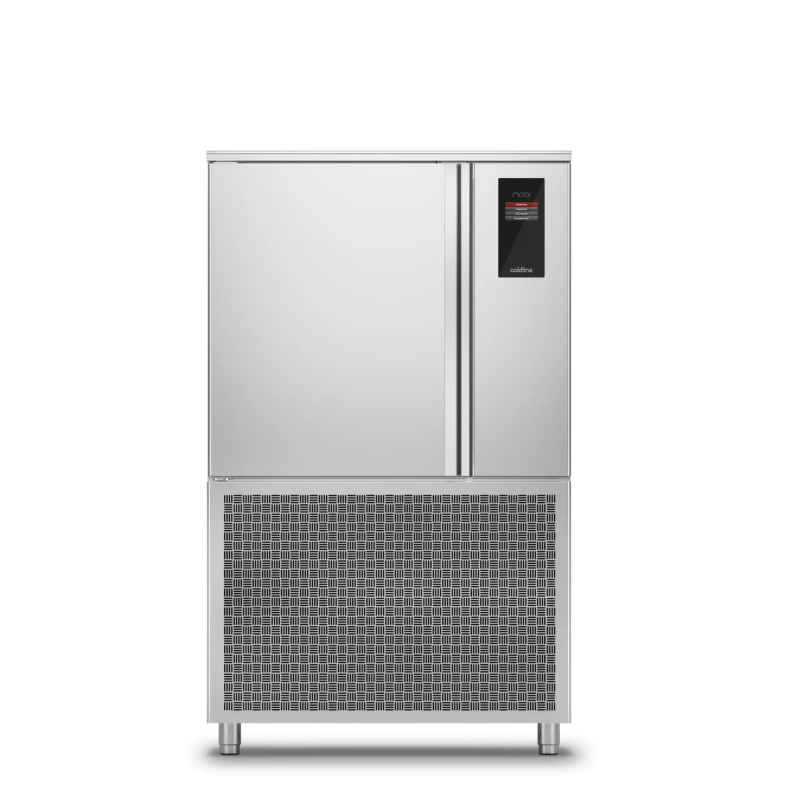

Blast Chiller Modi Up 14 levels GN-EN
This multifunctional unit offers rapid cooling, blast freezing, thawing, proofing, holding, drying, chocolate processing, and manual cycle options.
It is equipped with multiple GN slides and features doors with an integrated anti-odor system to maintain product integrity and hygiene in professional kitchen environments.
The control system includes a touchscreen display with a USB port for easy operation and data management.
The door gasket is a triple-chamber magnetic type that is easily replaceable, while the insulation is environmentally friendly and free of CFC and HCFC compounds, ensuring energy efficiency and compliance with safety standards.
Constructed with external and internal surfaces in AISI 304 stainless steel, this unit features rounded internal corners for optimal hygiene.
It includes a core probe with a quick-release mechanism for precise temperature monitoring.
The handle and grids are also made of AISI 304 stainless steel with quick-release functionality, and the adjustable feet provide stability on various surfaces.
Technical specifications
| Gross capacity | 513 lt |
| Operating temperature | -40°+65°C |
| Refrigeration unit | Built-in unit |
| Yield +90/+3 | 80 Kg |
| Yield +90/-18 | 60 Kg |
| Climatic class | 5 |
| Refrigerant gas | R452a (GWP=2.141) |
| Refrigerant charge | 5000g |
| Defrosting | With hot gas |
| Regulator | Mechanical expansion |
| Dimensions | 1100×1045×1843 mm |
| Packaging dimensions | 1180×1125×1905 mm |
| Net / gross weight | 205 Kg / 215 Kg |
| Net / Gross volume | / 513 lt |
| Power Supply | 400-415 V - 50-60 Hz |
| Unit power consumption | 7150 W - 16.64 A |
| Cooling capacity | 9820 W* |
| * | Evap. -10°C Cond. +45°C |
