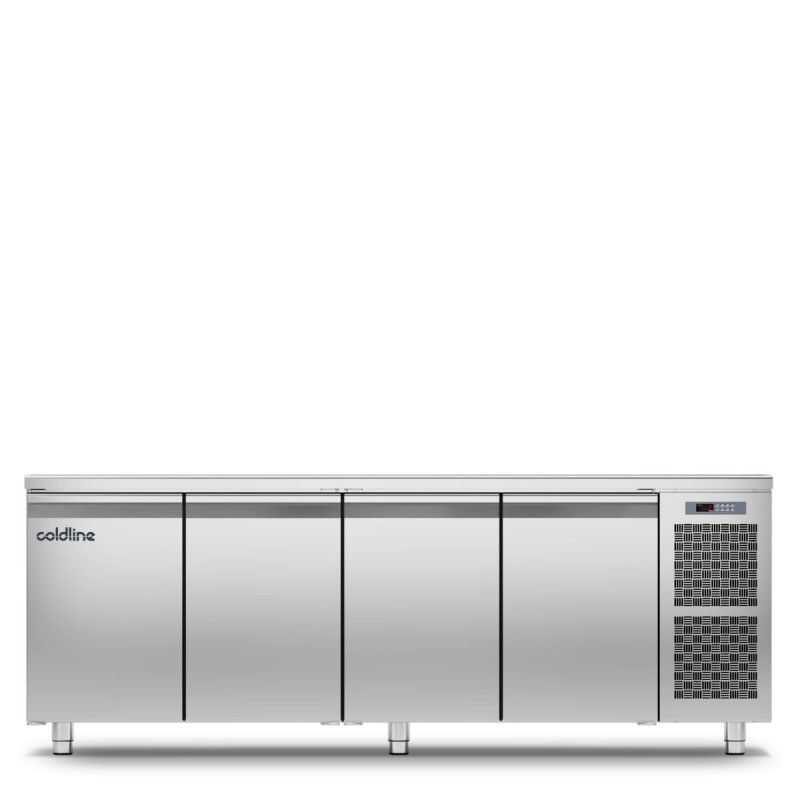

Freezer counter Master GN 4 doors - TP21/1B-710
This unit features four pairs of slides and four GN1/1 grids, controlled via a flush-mounted electronic display.
It includes four doors with automatic closing functionality, reversible design, and a 105° stop for ease of access.
The door gasket is a triple-chamber magnetic type and replaceable for maintenance convenience.
Insulation is environmentally friendly, free from CFC and HCFC.
The interior and exterior are finished in durable AISI 304 stainless steel with laminated back and bottom surfaces for enhanced durability.
Internal corners are rounded for easy cleaning and hygiene.
The handle is constructed from 2 mm thick AISI 304 stainless steel.
Grids and guides are also made of AISI 304 stainless steel.
The worktop is designed for professional use, supported by adjustable feet made from AISI 304 stainless steel.
Technical specifications
| Temperature | -15 °C / -22 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | E |
| Energy efficiency index | 80.7 |
| Annual consumption | 3642 kWh/year |
| Consumption 24h | 9,978 kWh/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 110 g |
| Defrost | Hot gas |
| Body height | 710 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 2260 x 700 x 850 mm |
| Packaging dimensions | 2355 x 800 x 1010 mm |
| Net weight | 210 kg |
| Gross weight | 220 kg |
| Net volume | 365 |
| Gross volume | 599 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 850 W - 3.9 A |
| Cooling capacity | 569 W |
| EVAP | Evap. -30°C / Cond. +55°C |
