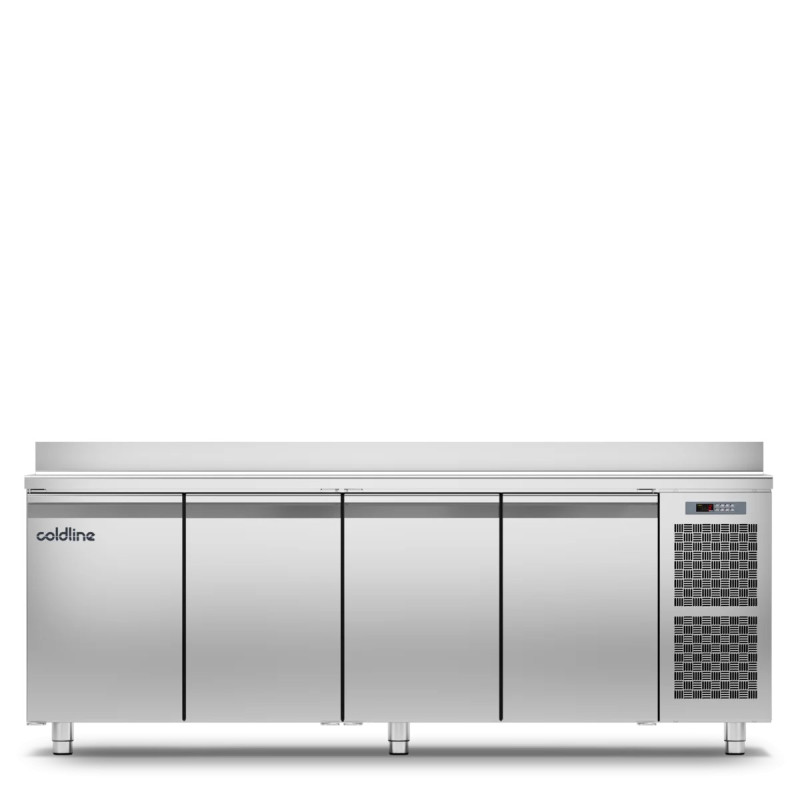

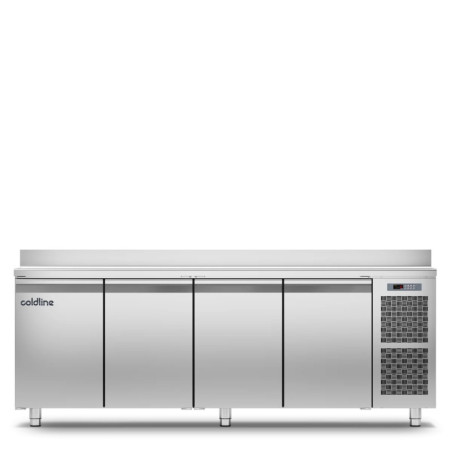

Freezer counter Master GN 4 doors with Backspash - TA21/1B-710
This equipment features four pairs of GN1/1 grids and is controlled via a flush-mounted electronic display.
It includes four doors with automatic closing, which are reversible and equipped with a stop function.
The handles are constructed from durable AISI 304 stainless steel.
The door gasket is a triple-chamber magnetic type that is replaceable for easy maintenance.
The insulation is free of CFC and HCFC, ensuring energy efficiency.
Both the interior and exterior finishes are made from AISI 304 stainless steel, with a laminated back and bottom for enhanced durability.
The interior features rounded corners for ease of cleaning.
Grids and guides are manufactured from AISI 304 stainless steel, while the worktop is backed for added strength.
The unit is supported by adjustable feet made of AISI 304 stainless steel, providing stability on uneven surfaces.
Technical specifications
| Temperature | -15 °C / -22 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | E |
| Energy efficiency index | 80.7 |
| Annual consumption | 3642 kWh/year |
| Consumption 24h | 9,978 kWh/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 110 g |
| Defrost | Hot gas |
| Body height | 710 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 2260 x 700 x 950 mm |
| Packaging dimensions | 2355 x 800 x 1010 mm |
| Net weight | 215 kg |
| Gross weight | 225 kg |
| Net volume | 365 |
| Gross volume | 599 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 850 W - 3.9 A |
| Cooling capacity | 569 W |
| EVAP | Evap. -30°C / Cond. +55°C |
