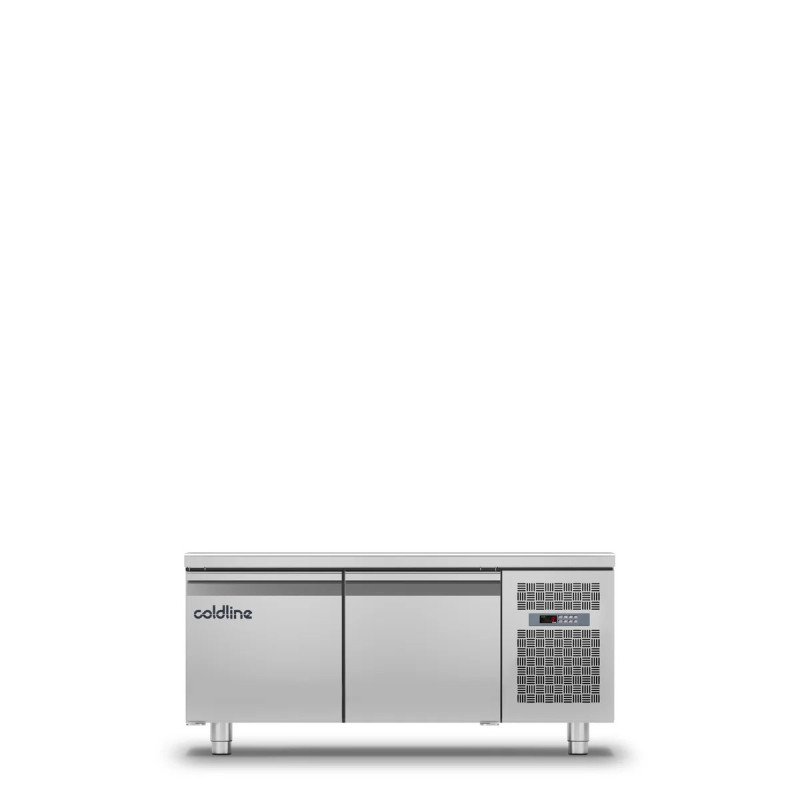

Refrigerator counter base GN 2 doors - TP13/1M-490
This equipment features two pairs of slides and two laminated GN1/1 grids, controlled via a flush-mounted electronic display.
The door seal is a triple-chamber magnetic design, which is easily replaceable to maintain optimal performance.
The unit includes two doors with automatic closing and reversible functionality, equipped with a stop mechanism.
Insulation is environmentally friendly, free from CFCs and HCFCs.
Handles are crafted from durable AISI 304 stainless steel for reliable use.
Constructed with external and internal finishes in AISI 304 stainless steel, including the outer back and bottom in laminated steel, this unit ensures durability and hygiene.
Internal corners are rounded for easy cleaning.
Grids and guides are also made from AISI 304 stainless steel, complemented by an AISI 304 stainless steel worktop and adjustable feet for stability.
Technical specifications
| Temperature | -2 °C / +8 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | A |
| Energy efficiency index | 19.9 |
| Annual consumption | 409 kWh/year |
| Consumption 24h | 1.121 kW/h/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 110 g |
| Defrost | Hot gas |
| Body height | 490 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 1300 x 700 x 630 mm |
| Packaging dimensions | 1395 x 800 x 1010 mm |
| Net weight | 105 kg |
| Gross weight | 115 kg |
| Net volume | 105 L |
| Gross volume | 177 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 250 W - 1,15 A |
| Cooling capacity | 406 W |
| EVAP | Evap. -10°C Cond. +55°C |
