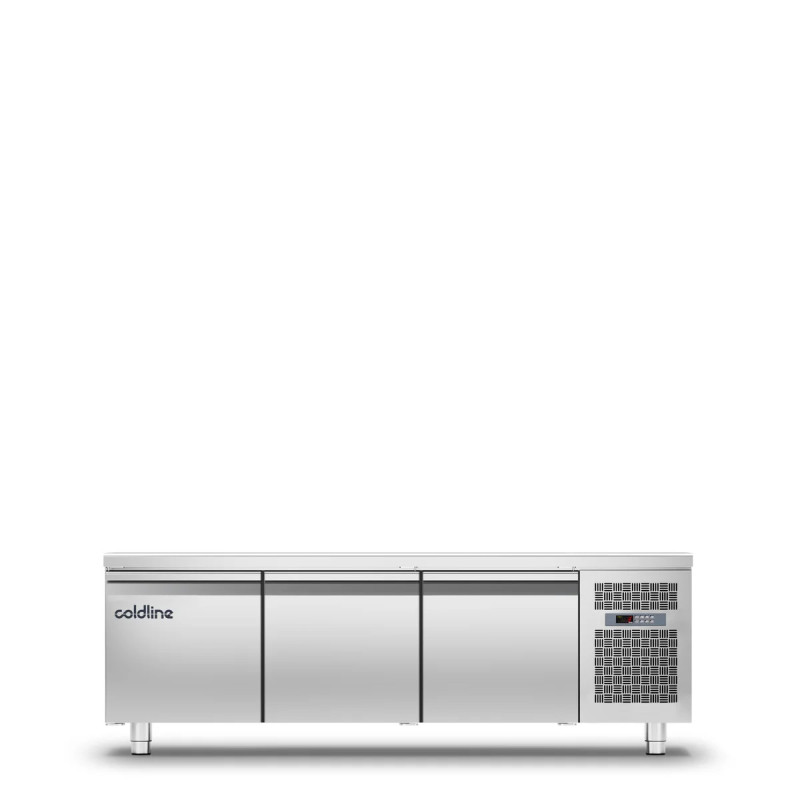

Refrigerator counter base GN 3 doors - TP17/1M-490
This equipment features three pairs of slides and three laminated GN1/1 grids, controlled via a flush-mounted electronic display.
The door seal is a triple-chamber magnetic type, designed for easy replacement, ensuring reliable performance in professional kitchen environments.
The unit includes three doors with automatic closing functionality, reversible with a stop feature for controlled opening.
It is insulated with environmentally friendly materials free of CFCs and HCFCs.
The handles are constructed from durable AISI 304 stainless steel, providing strength and hygiene.
Both internal and external surfaces are finished in AISI 304 stainless steel, including the outer back and bottom panels made of laminated steel.
Rounded internal corners enhance hygiene by facilitating cleaning.
Grids and guides are also made from AISI 304 stainless steel, complemented by a robust worktop and adjustable feet crafted from the same high-quality stainless steel for stability and durability.
Technical specifications
| Temperature | -2 °C / +8 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | A |
| Energy efficiency index | 21.8 |
| Annual consumption | 479 kWh/year |
| Consumption 24h | 1.312 kW/h/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 110 g |
| Defrost | Hot gas |
| Body height | 490 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 1780 x 700 x 630 mm |
| Packaging dimensions | 1875 x 800 x 1010 mm |
| Net weight | 130 kg |
| Gross weight | 140 kg |
| Net volume | 158 L |
| Gross volume | 278 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 250 W - 1,15 A |
| Cooling capacity | 406 W |
| EVAP | Evap. -10°C Cond. +55°C |
