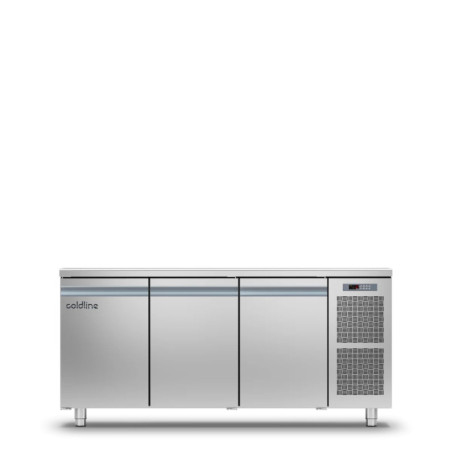

Refrigerator counter Smart GN 3 doors - TP17/1ME-710
This commercial refrigeration unit features multiple pairs of grids and a flush-mounted electronic control display for precise temperature management.
It includes three doors with automatic closing, reversible functionality, and a stop mechanism for controlled opening.
The insulation is environmentally friendly, free from CFC and HCFC, ensuring energy efficiency and reliable thermal retention.
Equipped with a triple-chamber magnetic door gasket that is replaceable for maintaining optimal sealing, the unit boasts durable AISI 304 stainless steel construction both inside and out, complemented by a laminated back and bottom for enhanced durability.
Rounded internal corners facilitate easy cleaning, while the PVC handle provides ergonomic operation.
The grids and guides are crafted from AISI 304 stainless steel for strength and corrosion resistance.
The worktop is designed for professional use, and the unit includes adjustable stainless steel feet to ensure stability on uneven surfaces.
Technical specifications
| Temperature | -2 °C / +8 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | A |
| Energy efficiency index | 24.7 |
| Annual consumption | 616 kWh/year |
| Consumption 24h | 1,688 kWh/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Refrigerant charge | 110 g |
| Defrost | Hot gas |
| Body height | 710 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 1780 x 700 x 850 mm |
| Packaging dimensions | 1875 x 800 x 1010 mm |
| Net weight | 140 kg |
| Gross weight | 150 kg |
| Net volume | 274 |
| Gross volume | 440 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 250 W - 1.15 A |
| Cooling capacity | 406 W |
| EVAP | Evap. -10°C / Cond. +55°C |
