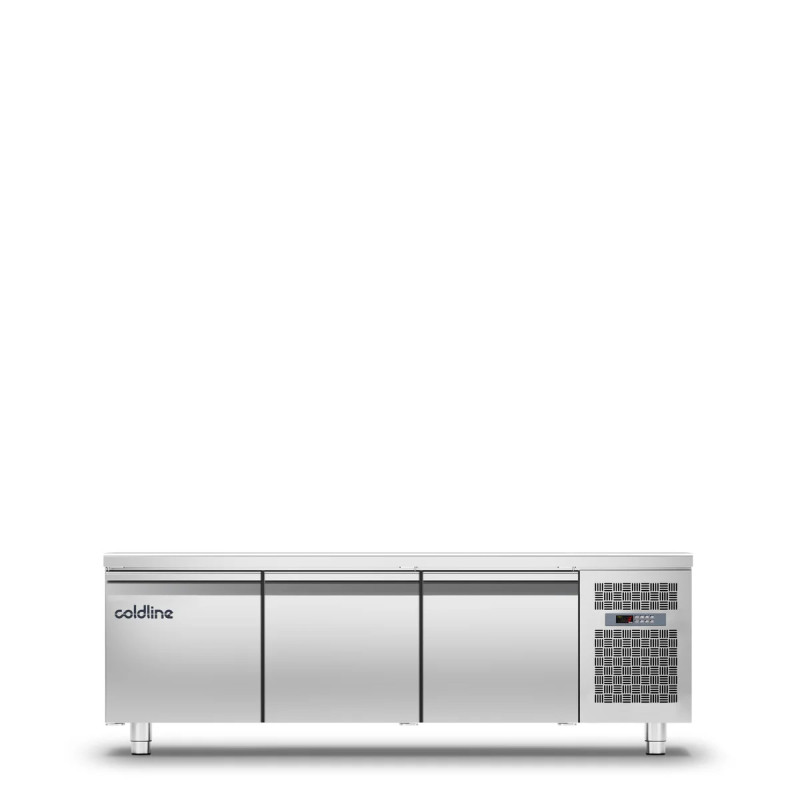

Freezer counter base GN 3 doors - TP17/1B-490
This equipment features three pairs of slides and three laminated GN1/1 grids, controlled via a flush-mounted electronic display.
It includes a triple-chamber magnetic door seal that is easily replaceable, ensuring reliable performance in professional kitchen environments.
The unit is equipped with three doors that have automatic closing and are reversible with a stop feature.
It offers high-quality insulation without the use of CFC or HCFC, and the handles are constructed from durable AISI 304 stainless steel for long-lasting use.
The internal and external surfaces are finished in AISI 304 stainless steel, including the outer back and laminated steel bottom.
Rounded internal corners promote maximum hygiene, while grids and guides are also made of AISI 304 stainless steel.
The worktop is designed for professional use, supported by adjustable feet in AISI 304 stainless steel for stability.
Technical specifications
| Temperature | -15 °C / -22 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | D |
| Energy efficiency index | 58 |
| Annual consumption | 1913 kWh/year |
| Consumption 24h | 5.241 kW/h/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Defrost | Hot gas |
| Body height | 490 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 1780 x 700 x 630 mm |
| Packaging dimensions | 1875 x 800 x 1010 mm |
| Net weight | 140 kg |
| Gross weight | 150 kg |
| Net volume | 158 L |
| Gross volume | 278 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 850 W - 3,9 A |
| Cooling capacity | 569 W |
| EVAP | Evap. -30°C Cond. +55°C |
