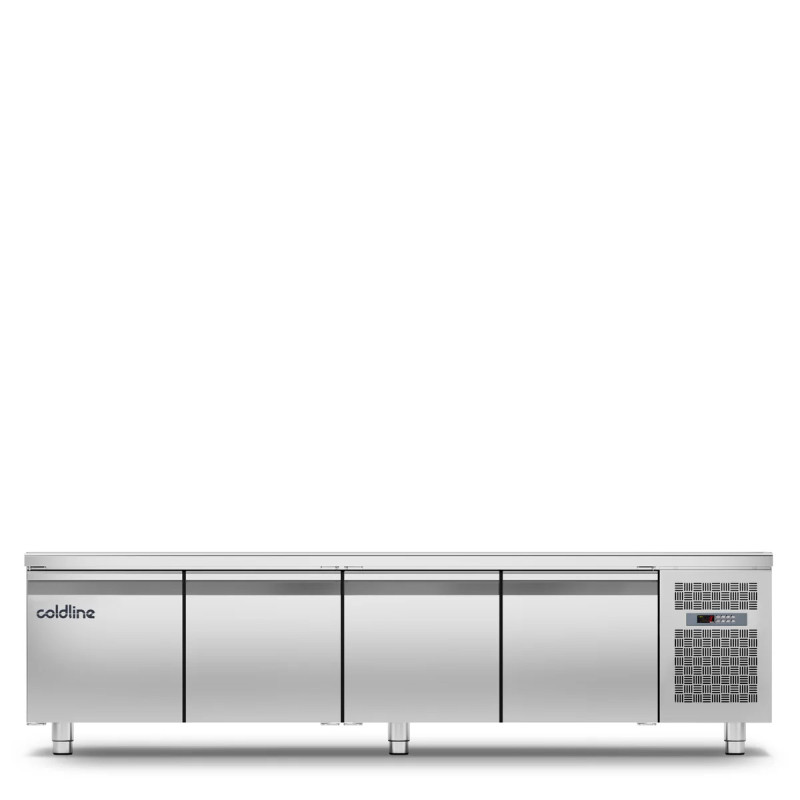

Freezer counter base GN 4 doors - TP21/1B-490
This equipment features multiple pairs of slides and plastic-coated GN1/1 grids for versatile storage options.
It includes a flush-mounted electronic control display for precise operation.
The door seal is a triple-chamber magnetic type that is easily replaceable, ensuring optimal insulation and energy efficiency.
The unit is equipped with multiple doors that close automatically and are reversible with a stop feature for convenience.
It is insulated with environmentally friendly materials free from CFC and HCFC.
The handles are constructed from durable AISI 304 stainless steel, providing strength and corrosion resistance.
The internal and external surfaces are finished in AISI 304 stainless steel, including the outer back and laminated steel bottom, ensuring durability and easy cleaning.
Rounded internal corners promote maximum hygiene.
Grids and guides are also made from AISI 304 stainless steel.
The worktop is robust and practical, supported by adjustable stainless steel feet for stability on uneven surfaces.
Technical specifications
| Temperature | -15 °C / -22 °C |
| Refrigeration unit | Built-in unit |
| Energy efficiency class | E |
| Energy efficiency index | 75.5 |
| Annual consumption | 2725 kWh/year |
| Consumption 24h | 7.466 kW/h/24 h |
| Climatic class | 5 |
| Refrigerant gas | R290 (GWP=3) |
| Defrost | Hot gas |
| Body height | 490 mm |
| Regulator | Solenoid supplied as standard |
| Dimensions | 2260 x 700 x 630 mm |
| Packaging dimensions | 2355 x 800 x 1010 mm |
| Net weight | 190 kg |
| Gross weight | 200 kg |
| Net volume | 210 L |
| Gross volume | 380 L |
| Power supply | 220 V - 240 V / 50 Hz |
| Unit power consumption | 850 W - 3,9 A |
| Cooling capacity | 569 W |
| EVAP | Evap. -30°C Cond. +55°C |
