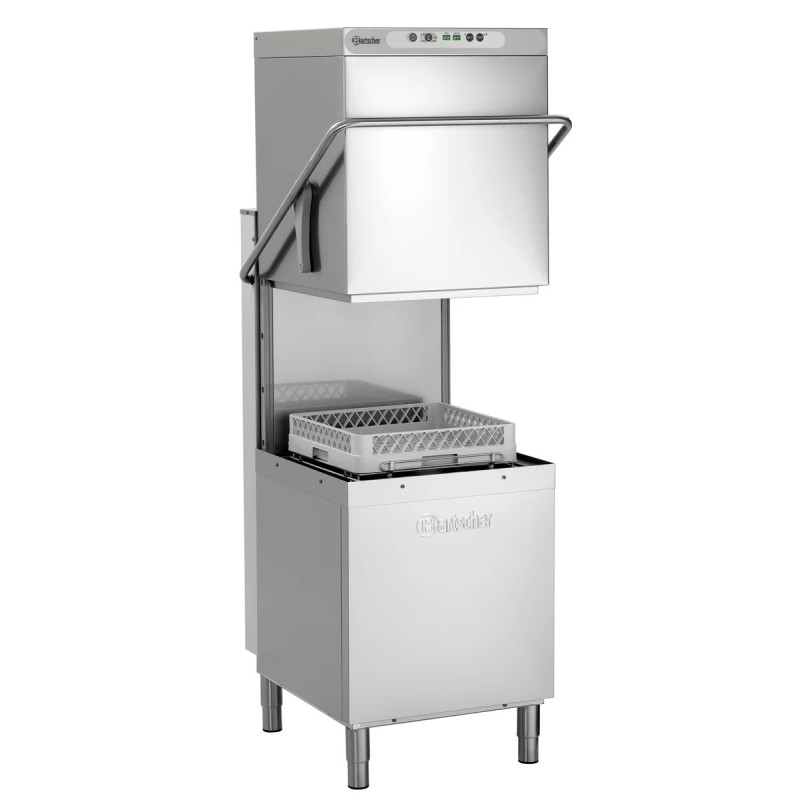

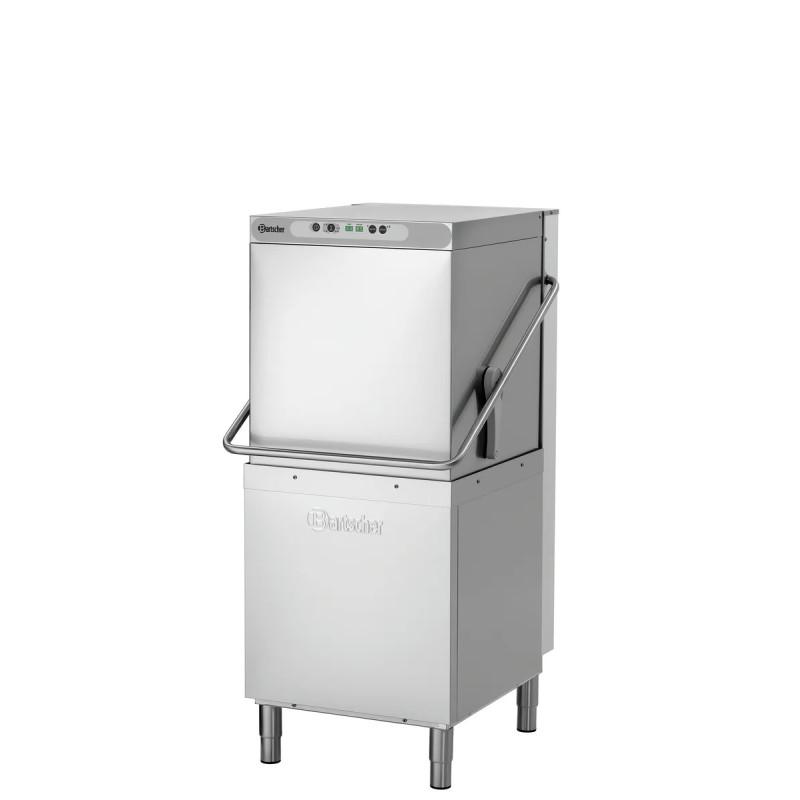

The DS 500 pass-through dishwasher offers hygienic and economical operation with an innovative drainage system, an energy-saving boiler system, an efficient DuoFlo pump, and a smooth-running lift system.

It features an easy-to-use lift system requiring minimal effort, reduced pump loss for improved efficiency, and a boiler that activates only when necessary to conserve energy.

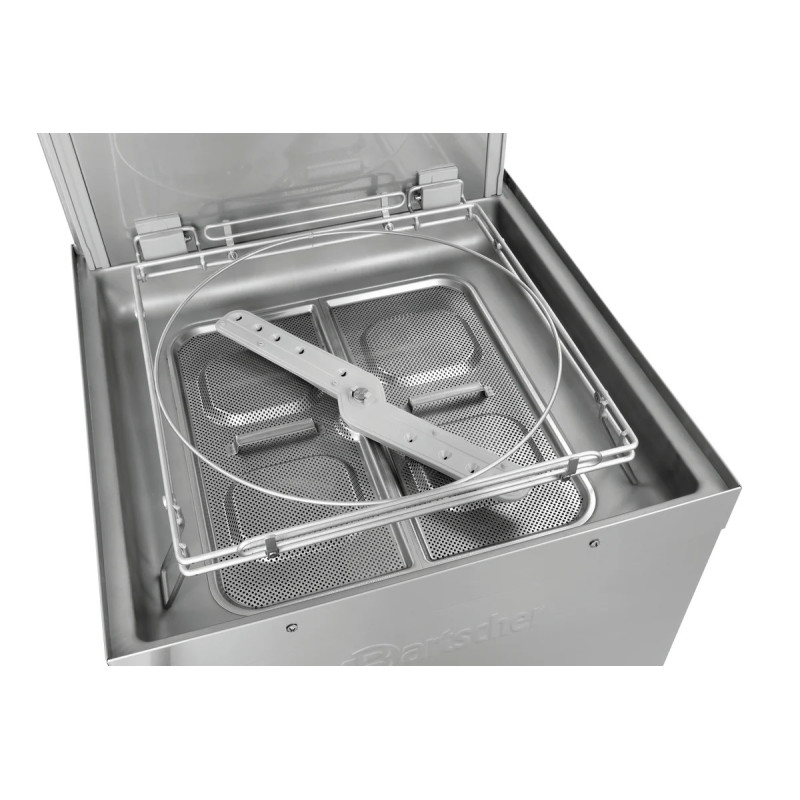

The dishwasher includes an EDS drain system, a flat tank with a large filter, and can be installed inline or in a corner.

The tank is double-walled for enhanced durability and insulation.

This dishwasher is equipped with a powerful boiler heater and tank heater, designed to operate within specified water pressure parameters.

It offers multiple wash programs and includes a clear rinsing dosing pump to ensure thorough cleaning.

Features include an automatic hood start function, height-adjustable feet for stability, an ON/OFF switch, and a maximum output capacity suitable for professional use.

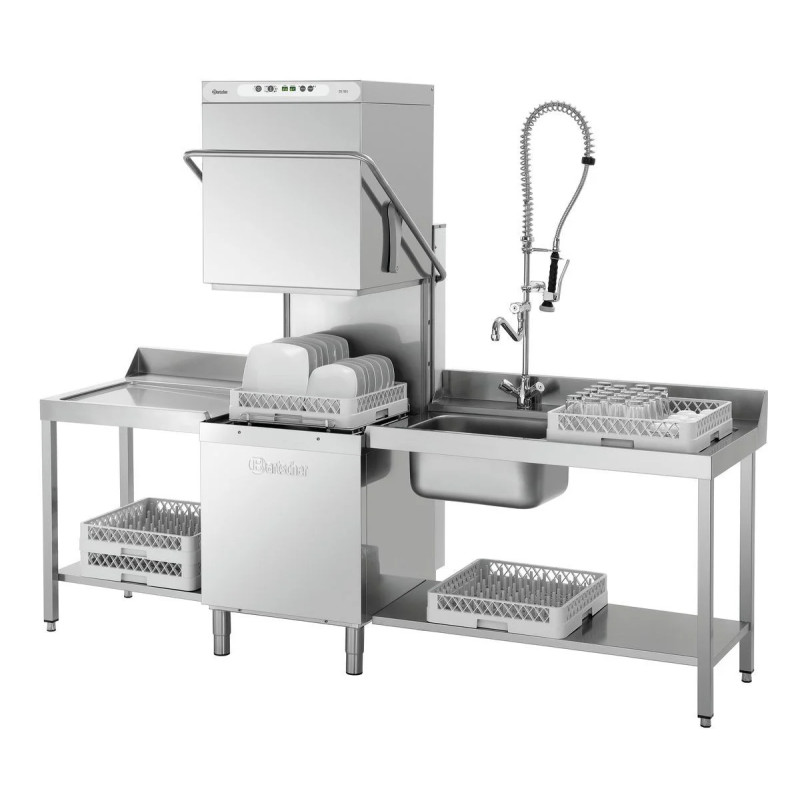

The machine requires external feed and removal tables as well as pre-cleaning, which are not included.

It does not include a cleaning agent dosing pump or lye pump, and it is compatible with a standard water supply connection.

Constructed from high-quality CNS 18/10 stainless steel, this dishwasher ensures durability and hygiene.

It includes dry-run protection and a door contact switch for safety, along with a safety thermostat.

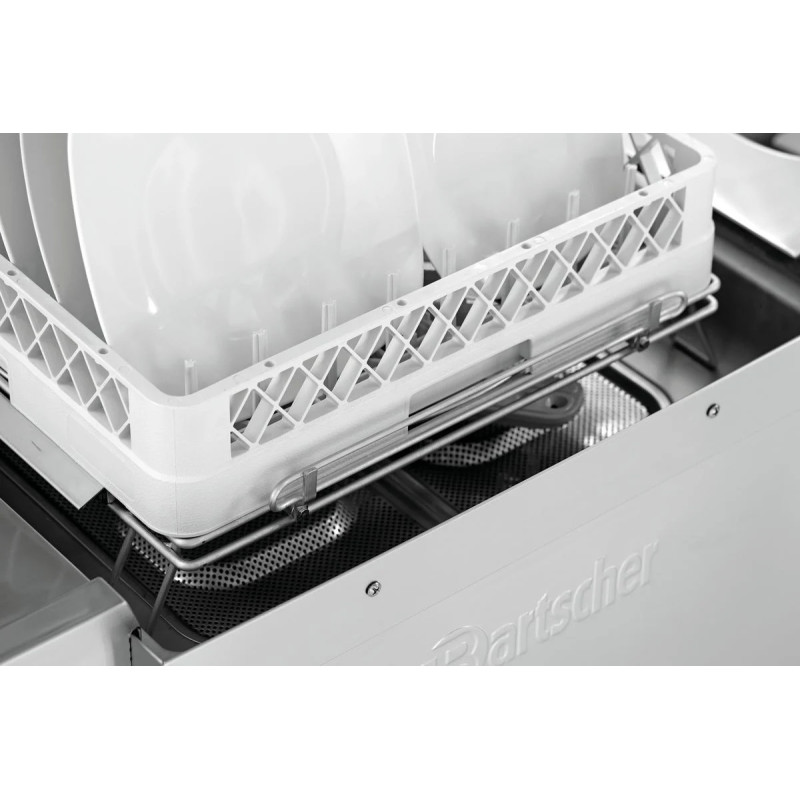

The unit comes with essential accessories such as universal and plate baskets, a cutlery holder, spare sealing rings, and water supply and outlet hoses.

It operates on a 400 V power supply with a 6.7 kW power rating and features control lamps indicating power status, heating, draining, and program operation modes.

The equipment connection is 3 NAC, and the dishwasher does not include a self-cleaning function or cold rinsing capability.
